Description

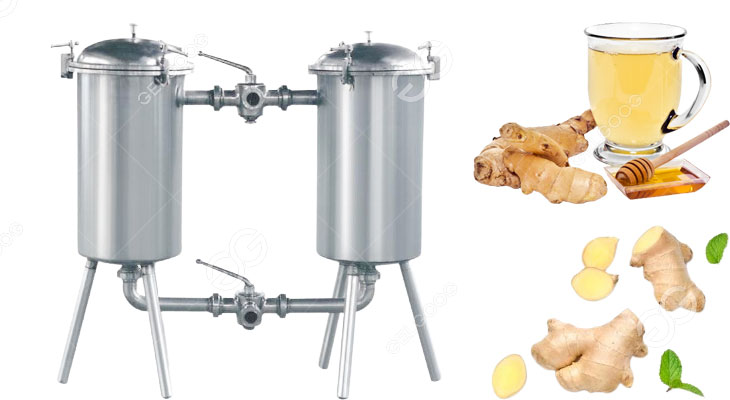

Duplex filter is also called double switch filter. It is composed of two stainless steel filters in parallel. It has many advantages such as novel and reasonable structure, good sealing performance, strong flow capacity, and easy operation. It has a wide range of applications and strong adaptability. Multipurpose filter equipment.The duplex filter is composed of two cylinders, and is suitable for the purification and filtration of solid impurities invisible to the naked eye in liquids such as ginger juice and other fruit juice beverages and sugar liquid. The two filters are used alternately, and the filter screen can be replaced without stopping, which is suitable for continuous production.
Ginger Juice Filter Advantages
Novel and reasonable structure, good sealing performance and strong flow capacity;
It is a multi-purpose filter equipment with simple operation, wide application range and strong adaptability.
It has the characteristics of large dirt holding capacity, fast filtration speed, low cost of use and convenient operation.
There is no need to stop the filter when cleaning the filter to ensure its continuous operation. It is the first choice for continuous production line filter devices.
Duplex Filter Parameter
| Model | GG |
| Temperature | <=100℃ |
| Filter capacity(t/h) | 2/5/10 |
| Material | SUS304 /SUS316L |
| Work pressure(Mpa) | <=0.3 |
| Passed area(m2) | 0.15/0.30/0.40 |
| Filter aperture | 60-400mesh adjustable |
| Import & export pipe diameter(mm) | Φ32 / φ40 |

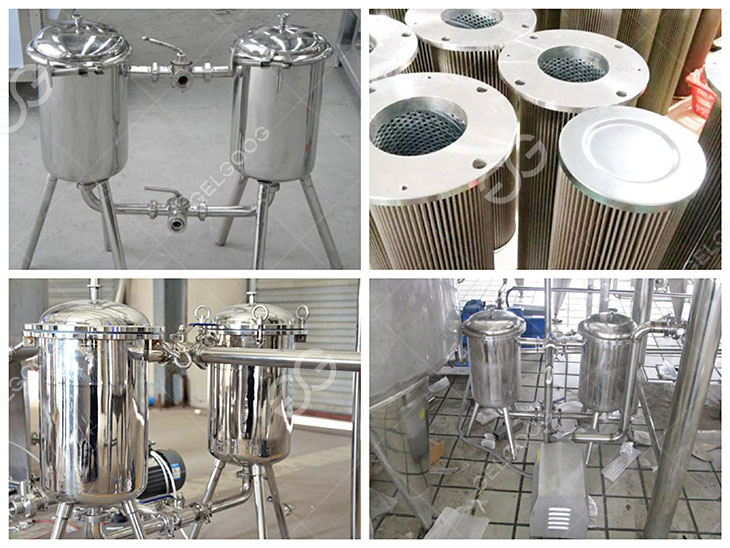

Ginger Juice Duplex Filter Features
1. The top is equipped with a vent valve to discharge the air in the filter during filtration.
2. The inner and outer surfaces are polished, and the filter cartridge is equipped with a stainless steel filter screen and a filter screen support basket;
3. The connection between the upper cover and the filter cartridge adopts a quick-opening structure, which is more convenient for cleaning (replacing) the filter screen. Three adjustable feet can make the filter stable on the ground.
4. The connecting pipeline adopts live connection or clamp connection method, and the inlet and outlet valves are opened and closed by three-way ball valve, which is pressure-resistant and temperature-resistant, flexible and convenient to operate, and more hygienic without leakage of material liquid.
