Description

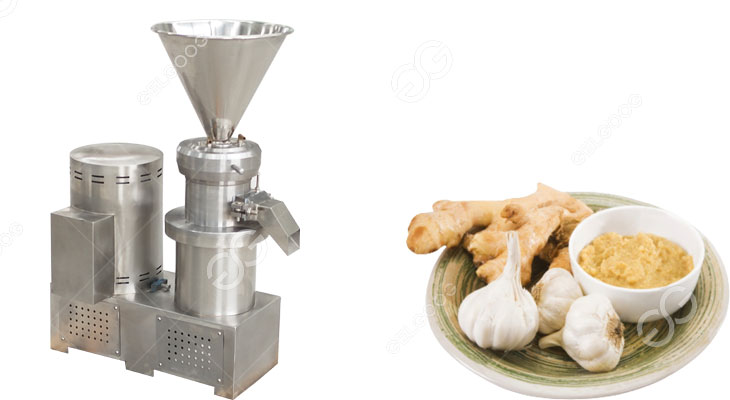

Ginger paste grinding machine also called colloid mill, it is a wet-type material micro-processing machine. The machine has the characteristics of reasonable structure, simple operation, convenient noise and maintenance, small footprint, good corrosion resistance and wide application.
Ginger paste colloid mill working principle
The basic working principle of ginger colloid mill is shearing, grinding and high-speed stirring. Grinding relies on the relative movement of two tooth surfaces, one of which is rotating at high speed and the other is stationary, so that the material passing between the tooth surfaces is subjected to great shearing force and friction force, and at the same time, it vibrates at high frequency, high-speed vortex, etc. Under the action of complex force, the material can be effectively dispersed, emulsified, crushed and homogenized.
Here is the ginger garlic paste grinding machine youtube video for your reference:
Ginger Paste Grinding Machine Parameter
| Model | GGB-50 | GGB-80 | GGB-110 | GGB-130 | GGB-180 | GGB-240 | GGB-300 |
| Output size (mesh) |
50-100 | 50-100 | 100-200 | 100-200 | 100-200 | 100-200 | 60-200 |
| Capacity(kg/h) | 7-8 | 70-100 | 300 | 400-600 | 800-1000 | 1500-2000 | 3000-4000 |
| Power (KW) |
1.1(380V) 1.5(220V) |
4(380V/220V) | 7.5 | 15 | 18.5 | 45 | 75 |
| Weight (kg) |
50 | 150 | 175 | 285 | 340 | 1300 | 1600 |
Ginger Paste Grinding Machine Features
1.The primary components are constructed using stainless steel, which possesses resistance to corrosion and is non-toxic.
2.Various grinding teeth made of different materials and with varying hardness can be chosen based on specific purposes. This allows for easy assembly, disassembly, and cleaning.
3.A wide range of specifications and types are available, accompanied by optional cooling or heating systems that can be selected according to individual requirements.
4.The key operational components of the ginger paste grinding machine undergo thorough processing, utilizing advanced technology. The precision tuning mechanism is reliable and sophisticated, featuring a scale for convenient control, thereby ensuring high-quality processing.
