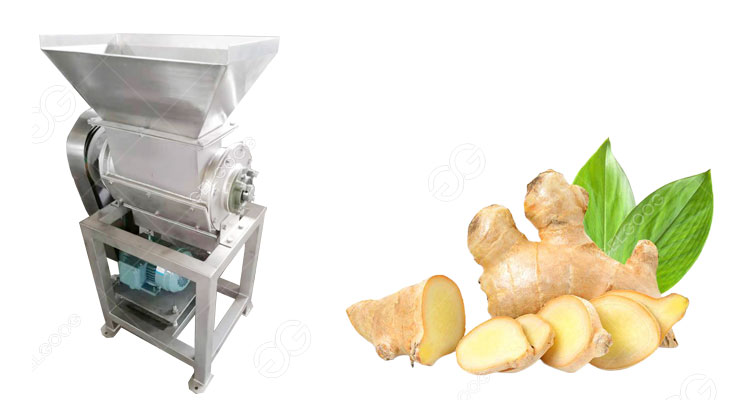

Stainless Steel Ginger Crushing Machine

Description

The ginger crushing machine is suitable for crushing berries and pome fruits and vegetables, such as: tomato, dragon fruit, ginger, garlic, pepper, pear, apple, etc. At the same time, it can also crush pre-cooked and softened pome fruits and vegetables. The broken particle size is 5-8mm.

Component

The ginger crushing machine is mainly composed of feed hopper, crushing parts, bracket, discharge hopper, transmission parts, etc., and the parts contacting materials are all made of stainless steel.

Crusher Technical Parameters

○Fruit processing capacity: 5T/h;
○With power: 2.2KW;
○Flying knife speed: 310r/min;
○Dimensions: 910×610×1175mm

Here is the youtube video working process in our factory for your reference!!

Ginger Crusher Advantages

Energy saving and high efficiency;
Large production capacity;
Novel and compact structure;
The advantages of wide application range;

Ginger crushing machine working principle

Driven by the motor, the flying knife rotates around its own axis in the gap between the fixed bottom knives, thereby crushing the fruits and vegetables. There are four sets of flying knives on the rotor, and the bottom knife is a group. Depending on the type of fruits and vegetables, the discharge hopper has a bucket type. and tubular form. A buffer net device is added to the upper part of the discharge hopper (marked as A in the schematic diagram) to obtain finer-grained materials. The frame can be covered with stainless steel plates according to user requirements.
