Description

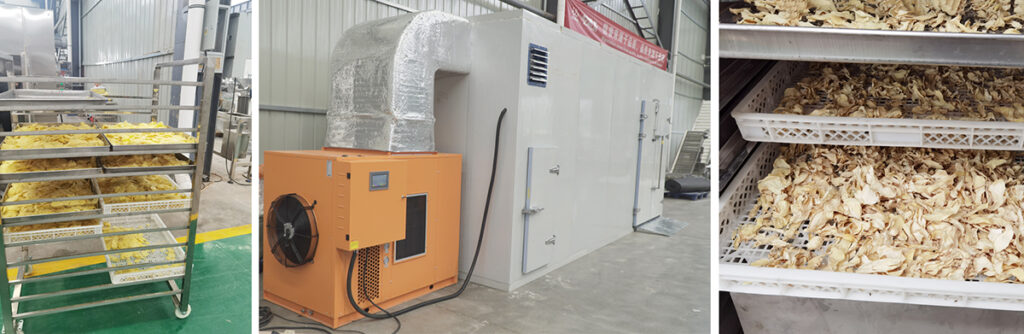

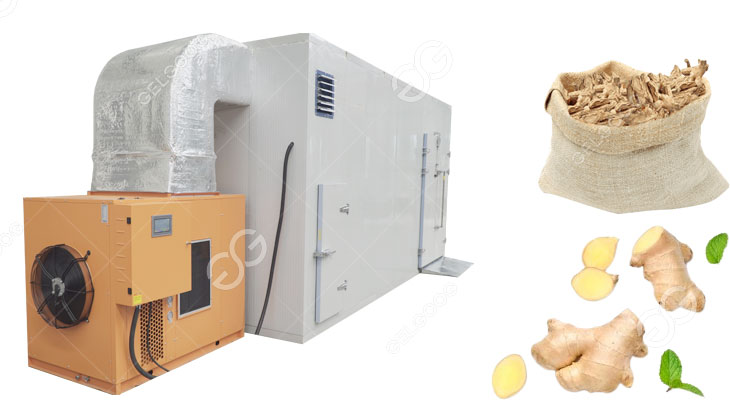

The ginger drying machine is a box-type hot pump dryer equipment. It adopts a new type of heat pump drying technology, and only needs to consume a small amount of electric energy to achieve batch drying of ginger. At the same time, it is equipped with an intelligent PLC microcomputer control system, and the suitable drying parameters are set, and the automatic drying mode can be realized with one key. The whole process of intelligent temperature control and humidity control, 24 hours of continuous drying operation, automatic shutdown after the operation, realizes unattended operation, and greatly improves the drying efficiency of ginger.
Heat Pump Dryer Parameter
| Item | Heat Pump Dryer Parameter | |||
| Model | GG-3P | GG-7P | GG-15P | Unit |
| Environment temperature | -10-43 | -15-43 | -15-43 | ºC |
| Drying temperature range | 30-75 | 30-75 | 30-75 | ºC |
| Rated power | 4 | 12 | 21 | Kw |
| Maximum power | 10 | 18 | 33 | Kw |
| Power supply form | 380/3/50 | 380/3/50 | 380/3/50 | V/Ph/Hz |
| Temperature control accuracy | ±1 | ±1 | ±1 | ºC |
| Electric heating power | 6 | 6 | 12 | Kw |
| Controller | Single chip microcomputer/PLC+color screen control | |||
| Noise level | ≤75 | ≤75 | ≤75 | dB(A) |
| Capacity | 100-200 | 300-700 | 800-1500 | Kg |
| Dehydration capacity | 9 | 21 | 43 | Kg/h(=50ºC,80%) |
Ginger Drying Machine Features
Not subject to weather
●Operates 24 hours a day, no matter what the weather
Intelligent operation, no need to be on duty
●Using intelligent PLC touch screen control panel unit to run automatically, no need to guard or flip
Small footprint and durable
●Using a unique drying room design, no space as large as the sun is needed, which saves a lot of site rent
High utilization of heat energy
●Adopt closed dehumidification mode, no need to discharge waste heat to the outside. So no heat is lost when quickly expelling water
Energy saving, energy saving, safety and environmental protection
●The first efficient heat recovery technology, one kWh of electricity can be used as four kWh of electricity, saving 60% energy compared with ordinary drying equipmen
Dry evenly, good effect
●30 degree hot air circulation, there is no dead angle in the drying room. After drying, the color and fragrance of the finished product are very individual: the active ingredients are high, and there will be no dry or moldy phenomenon.
The drying quality of air-dried materials is better, especially suitable for drying sensitive and volatile products. In the automatic heat pump drying process, the dried ginger contains spicy and aromatic components (“gingerone” in aromatic volatile oils), and the “ginger flavor” of dried ginger slices is more intense.
