Description

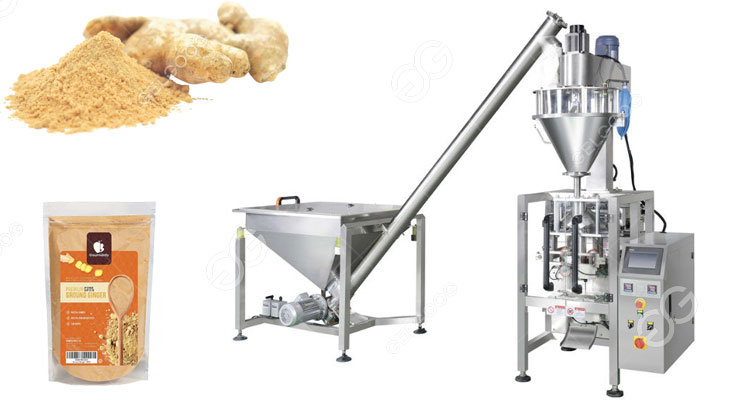

Ginger powder packaging machine is made of 304 stainless steel, imported servo film conveying system, imported color code sensor, accurate positioning, excellent overall performance and beautiful packaging. It has the advantages of high weighing accuracy and fast speed. Bag making equipment can be replaced according to the specific requirements of customers and products.
Ginger Powder Packing Machine Advantages
01
CPU single-chip control, stepper motor pulling film, screen adjustment parameters.
02
Screw metering, no tools needed to adjust the weight, stable performance and simple operation.
03
Fully automatic from measuring, filling bag making, date printing to product output at one time.
04
Borrowing the principle of the elastic and pressing knife, pneumatic slitting, and five consecutive packs are more stable.
05
Using frequency conversion speed regulation, the operation is more stable, the noise is lower, and the failure rate is low.
Ginger Powder Filling Machine Parameter
| Model | GGLF-500 |
| Packing Speed | 18-35Bags/min|40-65 Bags/min |
| Bag making Size | L: 40-320mm|W: 40-220mm |
| Power | 1.8 kw/220v |
| Thickness of Film | 0.03-0.07 mm |
| Measuring Range | 100-1000ML |
| Weight | 500 kg |
| Dimension | 980*1200*1900 mm |
Ginger Powder Packing Machine Features
1. Screw powder meter
Made of 304 stainless steel, stable and durable, with high measurement accuracy.
2. Electronic control components
The internal structure of the chassis is arranged in an orderly and tidy manner, and each root has a code mark, which is convenient for future maintenance operations.
3. Servo film transport system
External film release mechanism, the packaging film installation is simpler and faster.
4. Sealing link
Rotate and rotate the constant temperature heat-sealing cutter to seal the front and rear ends of the packaged product. Optional gusset device makes the bag shape more beautiful and avoids curling at the sealing position.
